Phab ntsa-Mounted Metal Electrical Distribution Box
Tsim los rau cov chaw ua haujlwm tiag. Tsis yog Catalog nplooj ntawv xwb.
Koj cov cables twb nyob rau hauv lub tais. Koj phab ntsa yog pob zeb. Koj lub sijhawm yog nag hmo. Qhov no yog lub kaw lus uas haum rau phab ntsa, phim lub tais, thiab cov nkoj npaj txhij los txiav.
📐 Upload koj phab ntsa layout - Tau kos duab hauv 8 Teev
📦 Thov Sample Box
⚡ Cov nqe lus ntau rau 50+ Chav nyob
Qhov teeb meem: Feem ntau "Standard" Boxes tsis yog tsim rau tiag installation
Yog tias koj tau tswj hwm qhov kev teeb tsa hluav taws xob, koj paub qhov sib txawv ntawmcas lub catalog cog lusthiabqhov chaw xav tau dab tsi:
| Catalog cog lus | Txoj hauj lwm-Site Reality |
|---|---|
| "Universal mounting" | Pob zeb anchors tsis line up. Lub thawv zaum crooked. |
| "Standard cable nkag" | Koj lub tais cable xaus 50mm saum lub thawv. Tam sim no koj tab tom txiav hlau ntawm qhov chaw. |
| "Adequate ventilation" | Lub vaj huam sib luag khiav kub vim cov vents fim phab ntsa. |
| "IP rated" | Lub gasket ntog tawm thaum lub qhov rooj qhib thib peb. |
| "DIN rail nrog" | Ib txoj kev tsheb ciav hlau, txoj haujlwm ruaj khov, thiab koj cov khoom tsis haum rau qhov tob. |
Txhua qhov teeb meem "me" no raug nqi teev. Ntawm 200-unit coj mus muag haum-tawm, yogtsis yog ncua - nws yog tus neeg tua neeg.
QHECO Qhov txawv: Engineered rau Installation, Tsis yog Manufacturing
Peb tsim cov phab ntsa no -mounted hlau faib lub thawv rov qab -pib los ntawm cov pob zeb ua vaj tse thiab lub tais cable, thiab ua haujlwm sab hauv rau cov khoom siv.
1. Phab ntsa{1}}Thawj Mounting Architecture

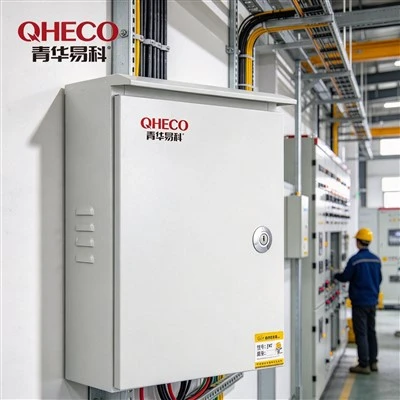

Koj daim duab uploaded qhia tau hais tias peb daws tau li cas: ib lub thawv mounted flush rau ib phab ntsa pob zeb, nrog cable tais khiav saum taub hau.
Slotted sab nraud mounting lugsntawm 4 fab - kab rov tav lossis ntsug hloov kho ± 15mm. Txawm hais tias koj cov pob zeb pob zeb yog me ntsis tawm, lub thawv tseem zaum square.
Recessed rov qab vaj huam sib luag- zaum 10mm ntawm phab ntsa saum npoo, tiv thaiv kom tsis txhob ya raws thiab cia cov kav dej hla tom qab yog tias xav tau.
Flush-mount xaiv- rau qhov chaw sab hauv tiav uas qhov kev sib tw tseem ceeb.
2. Cable Tais & Conduit Integration
Lub thawv hauv koj daim duab tso ncaj qha hauv qab lub tais cable. Qhov ntawd tsis yog qhov xwm txheej - yog li cas cov tsev niaj hnub txuas nrog.
Sab saum toj - cov kab hlau nkagua ntej- xuas nrig ntaus kom phim tus qauv cable tais dav (50mm, 100mm, 150mm)
Knockout- thaj chaw dawbqhov twg koj tsis xav tau qhov; khoom hlau qhov twg koj ua
Internal cable tswj brackets- Cov kab hluav taws xob nkag los cheb cia thiab txiav tsis hla cov tsheb npav nyob
Sab ventilation louversnyob rau hauv qab ntawm lub tais kab - airflow yam tsis muaj dej ingress los saum toj no
3. Thermal Management uas ua tau tiag tiag
Sab- phab ntsa qhov cua nkag (pom hauv koj daim duab) yog qhov tseeb- stamped nrogdownward-faus louvers- cua ntws hauv, dej ntws tawm. Ua ke nrog:
Internal chimney nyhuvtsim: cua kub nce thiab tawm los ntawm lub qhov cua sab saum toj (yeem)
Daim ntawv qhia qhov sib nruglaser -etched rau ntawm lub phaj mounting - tsis xav xav ntxiv yog tias koj breaker clearances raws li txoj cai
Xaiv tus kiv cua- txiav tawmnrog IP55- ntsuas lim kiv cua rau kev teeb tsa siab
4. Qhov Rooj & Kev Nkag Mus Uas Ciaj sia siv txhua hnub
Npog pob khawmnrog 120℃qhib - tsis snag ntawm hla cables
Lub quarter- tig lub cam xauvnrog 2-tus yuam sij teeb; hloov mus rau padlock hasp rau qhov chaw sab nraum zoov
Nruam PU gasketkhi rau ntawm lub qhov rooj, tsis yog lub cev - yog li nws tsis poob tawm thaum lub qhov rooj raug tshem tawm los thaiv
Xaiv lub qhov rais pob tshabrau 'meter' los yog qhov taw qhia pom kev tsis tau qhib lub qhov rooj

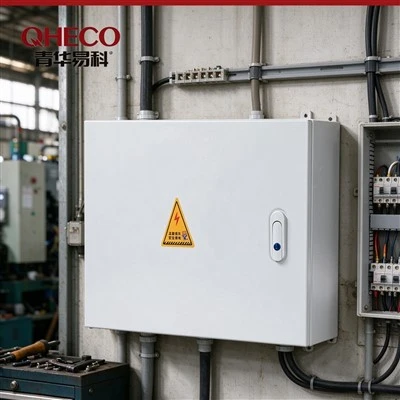

Koj Pom Dab Tsi hauv Daim Duab - Thiab Nws txhais li cas
Cov duab koj uploaded yog ib phau ntawv muaj kev teeb tsa. Cia peb txheeb xyuas vim li cas qhov kev teeb tsa tshwj xeeb no ua haujlwm:
| Nto moo Element | Kev txiav txim siab engineering |
|---|---|
| RAL 7035 lub teeb grey epoxy txheej | UV- ruaj khov, tsis muaj chalk nyob rau sab nraum zoov; phim tus qauv cable tais xim rau qhov pom kev sib xws |
| Daim ntawv ceeb toom ob hom lus (Suav / Lus Askiv) | OSHA / IEC 60417 kev nyab xeeb ua raws; peb tuaj yeem muab ANSI Z535, ISO 7010, lossis cov cim kev nyab xeeb kev cai |
| Sab qhov cua qhov | Passive txias rau cov uas tsis yog -ventilated hluav taws xob chav; Louvered tsim tswj kev ntsuas IP |
| Flush phab ntsa mounting | Tsis muaj qhov sib txawv hauv qab lub thawv - tiv thaiv kab tsuag thiab ua kom txaus siab rau kev tshuaj xyuas cov khoom noj / chaw muag tshuaj |
| Cable tais ncaj qha overhead | Sab saum toj- nkag caj pas phaj sib haum nrog lub tais txiav; tsis muaj ntawm - qhov chaw drilling yuav tsum tau |
| Qhob phab ntsa substrate | Hnyav-lub luag haujlwm nthuav dav thauj tog rau nkoj mounting lugs ntsuas rau 50kg + rub- tawm load |
Material & Finish - Ua raws li ib puag ncig, Tsis yog Nyiaj Txiag
| Qib | Khoom siv | Zoo tshaj rau | Ua kom tiav |
|---|---|---|---|
| Standard Industrial | 1.2mm txias-khoov hlau | Sab hauv kev lag luam, qhuav industrial | Epoxy hmoov txheej, RAL 7035 |
| Corrosion Resistant | 1.5 hli txias- dov steel + anti-corrosion primer | Ntug hiav txwv dej, av noo, raug tshuaj lom neeg | Epoxy hmoov txheej, kev cai RAL |
| Marine / Food Qib | 1.5mm stainless hlau 304 | Khoom noj khoom haus, marine, pharma | Txhuam los yog electropolished |
| Lub luag haujlwm hnyav | 2.0mm stainless hlau 316 | Offshore, hnyav tshuaj, ntug hiav txwv dej | Electropolished, passivated |
Tsis paub tias qib twg?Qhia rau peb paub koj qhov project qhov chaw (nqe deb ntawm ntug dej hiav txwv, av noo, raug tshuaj lom neeg) thiab peb spec nws - tsis muaj upsell, tsuas yog cov khoom tsim nyog.
Internal Layout - Peb Txoj Kev Tau Txais Koj Lub Thawv
Plhaub Empty
Lub thawv + mounting phaj + DIN rail
Koj populate thiab xaim
Kev xa khoom sai tshaj plaws, tus nqi qis tshaj
Cheebtsam -Npaj
Ua ntej-drilled rau koj cov kev teev tseg / cov khoom siv
Lub ntiaj teb busbar thiab nruab nrab bar ntsia
Koj xaim, peb tsis
Siab Wired & Tested
MCB, RCD, davhlau ya nyob twg blocks, timers - ntsia thiab xaim rau koj schematic
Factory dielectric xeem thiab continuity check
Av koj cov kab, ua kom muaj zog, ua tiav
Size Range - Vim "Ib Qhov Loj Fits Txhua" Fits tsis muaj dab tsi zoo
| Series | H × W × D (mm) | Daim ntawv thov |
|---|---|---|
| QH-Mini | 200 × 150 × 100 rau 300 × 250 × 150 | Cov thawv sib txuas, me me tswj Circuit Court |
| QH{0}}Compact | 400 × 300 × 150 rau 500 × 400 × 200 | Lub cev muaj zog pib, PLC vaj tse, teeb pom kev zoo panels |
| QH-Standard | 600 × 400 × 200 rau 800 × 600 × 250 | Distribution panels, meter enclosures, MCB boards |
| QH-Loj | 1000 × 800 × 300 rau 1200 × 1000 × 300 | Main faib, ATS controllers, inverter vaj tsev |
| QH-Kev cai | Txhua yam tsis yog - qhov loj me | Retrofit hloov, machinery kev koom ua ke |
Tag nrho qhov ntev yogsab nraud. Sab hauv clearances raug txo los ntawm 30-50mm nyob ntawm phab ntsa-mount lug thiab qhov rooj thickness.
Daim ntawv pov thawj & Kev Ua raws cai - Yam koj tus neeg soj ntsuam xav pom
✅ IEC 62208: Ua- Cov txheej txheem kaw qhov khoob
✅ IEC 61439-2: Cov- Rau kev sib dhos qis-voltage switchgear (thaum populated)
✅ IP55 / IP56 / IP65 / IP66- Thib peb-sab kuaj sim, cov ntawv ceeb toom muaj
✅ CE Marking- EU kev lag luam nkag
✅ RoHS- Kev ua raws li cov tshuaj lom
✅ UAS 508A- Kev tswj vaj huam sib luag (muaj raws li kev thov rau North American tej yaam num)
Txhua units ships nrog:
Test daim ntawv pov thawj (rau cov neeg nyob hauv vaj huam sib luag)
Cov ntaub ntawv pov thawj (rau kev txiav txim stainless hlau)
Daim ntawv ntsuam xyuas IP (ntawm kev thov)
Cov npe ntim nrog cov lej serial
Ntim & Logistics - Tuaj txog, Tsis Kho
| Paub meej | Specification |
|---|---|
| Kev ntim khoom ntawm tus kheej | PE tes tsho + 5-ply corrugated carton nrog kaum tiv thaiv |
| Ntim ntim ntau | Plywood pallet, strapped, ya raws - thaiv qhwv |
| Kev sau npe | Serial tooj barcode, siv qhov project, tuav cov lus qhia |
| Cov ntaub ntawv | Daim ntawv teev npe, daim ntawv pov thawj ntawm kev ua raws, kev qhia kev teeb tsa (ntau hom lus) |
| MOQ | 1 daim (piv txwv) / 50 daim (kev cai OEM nrog rau npe) |
| Qauv coj lub sijhawm | 5-8 hnub |
| Lub sijhawm ua khoom lag luam | 12-20 hnub nyob ntawm qhov nyuaj |
| Kev xa khoom | EXW / FOB Ningbo / CIF / DDP |
FAQ - Cov lus nug Cov neeg cog lus nug tiag tiag
Q: Koj puas tuaj yeem phim kuv qhov dav cable tais dav rau sab saum toj nkag?A: Yog. Peb hlais daim hlau kom phim koj lub tais qhov ntev - 50mm, 100mm, 150mm, lossis kev cai. Xa peb daim duab ntawm koj lub tais txiav tawm thiab peb mam li kho lub thawv kom zoo.
Q: Daim duab qhia daim ntawv ceeb toom ua lus Suav. Koj puas tuaj yeem muab cov ntawv Askiv / Arabic / Spanish?A: Yog lawm. Peb luam tawm IEC 60417, ANSI Z535, lossis tag nrho cov ntawv pov thawj kev nyab xeeb hauv txhua hom lus. Peb tseem tuaj yeem nkoj tsis muaj npe rau koj los thov koj tus kheej.
Q: Kuv phab ntsa tsis tiaj tiaj - nws yog blockwork nrog render. Cov mounting lugs puas yuav ua haujlwm?A: Yog. Peb slotted lugs haum ± 15mm hloov. Rau qhov chaw tsis sib xws, peb tuaj yeem muab cov shims spacer lossis rov qab -mount thav duab. Xa peb daim duab phab ntsa thiab peb yuav pom zoo rau txoj kev kho kom raug.
Q: Koj puas muab cov ntaub thaiv npog nrog cov khoom ua ntej - ntsia?A: Yog - MCBs, RCDs, contactors, terminal blocks, busbars. Peb muab ABB, Schneider, Chint, lossis koj lub npe teev npe. Txhua lub vaj huam sib luag uas muaj neeg nyob yog lub Hoobkas- kuaj ua ntej xa khoom.
Q: Yuav ua li cas yog tias kuv xav tau cov xim tsis yog - tus qauv xim kom phim kuv tus neeg siv khoom lub npe?A: Txhua xim RAL los ntawm 50 units. Hauv qab no, peb Tshuag RAL 7035 (lub teeb grey), RAL 9005 (dub), thiab RAL 9010 (dawb) tsis muaj yam tsawg kawg nkaus.
Vim li cas cov neeg cog lus xaiv QHECO hla cov Distributors hauv zos
| Hom Distributor | QHECO Direct Manufacturing |
|---|---|
| Tshuag loj xwb | Txhua qhov ntev, txhua qhov txiav tawm, txhua xim |
| 8-12 lub lis piam lub sij hawm ua kev cai | 12-20 hnub ntau lawm, kuaj hauv 5-8 hnub |
| Tsis muaj kev teeb tsa | Tag nrho cov vaj huam sib luag sib dhos thiab kuaj |
| Kev ntim khoom | Qhov project-labeled, barcode- taug qab, palletized |
| Yam tsawg kawg 500 units rau OEM | Private daim ntawv lo los ntawm 50 units; kev cai thawv los ntawm 1 unit |
| Tsis muaj kev txhawb nqa engineering | CAD kos duab, kev taw qhia kev teeb tsa, kev txhawb nqa video hu |
Hu rau Kev Ua - Cia Peb Kho Koj Phab Ntsa- Teeb meem Mount
Tsis txhob xaj lwm lub thawv "standard" thiab siv ob hnub ua kom haum. Xa peb:
Ib daim duab ntawm koj lub phab ntsa thiab cable tais layout
Koj daim ntawv teev npe (lossis tsuas yog qhia peb daim ntawv thov)
Koj qhov kev ntsuas IP xav tau thiab cov khoom nyiam
Tau txais ib daim duab kos duab thiab cov lus ruaj khov hauv 8 teev.
