Nplooj ntawv: Hlau Distribution Box - Phab ntsa-Mounted Electrical Instrument Enclosure
Hero Section - Reframe the Product
Phab ntsa-Mounted Electrical Instrument Enclosure
Tus Txheej Txheem Vaj Tsev Platform rau Cov Cuab Yeej Siv Hluav Taws Xob, PLCs & Tswj Systems
Koj lub rooj tsav xwm Circuit Court, HMI, lossis sensor array tsim nyog ntau dua li lub thawv generic. Qhov no yog lub kaw lus uas hloov koj cov cuab yeej mus rau hauv daim teb -cov khoom npaj.
🔧 Configure rau koj cov cuab yeej
🏷️ OEM Private Label los ntawm 50 units
📐 Kev cai Cutouts rau cov lus qhia, txuas & kav hlau txais xov
Txhob Hu Nws Lub Thawv. Pib Hu Nws Lub Platform.
Txhua qhov ntsuas kev lag luam - seb nws yog ib qhoPLC maub los, lub tshuab ntsuas hluav taws xob zoo, lub chaw taws teeb telemetry, lossis lub rooj vag kev cai IoT- xav tau peb yam kom muaj sia nyob hauv thaj teb:
Kev tiv thaiv lub cevlos ntawm hmoov av, noo noo, thiab cuam tshuam
Thermal stabilityrau rhiab electronics
Hom muaj nyobuas qhia txog kev tshaj lij rau koj cov neeg siv khoom kawg
The QHECOPhab ntsa-Mounted Metal Instrument Enclosureyog engineered li ibconfigurable platform, tsis yog lub thawv ntim khoom. Peb tsis muag koj lub plhaub hollow thiab thov kom koj muaj hmoo. Peb xa ibntau lawm- tsev nyobuas koom ua ke nrog koj lub cuab yeej cov qauv, qhov txuas txuas, thiab cov kev xav tau thermal - yog li koj tsom rau koj cov khoom siv hluav taws xob, tsis yog ntawm cov khoom siv hlau.
Los ntawm Circuit Board mus rau Field Product - Tsis muaj Fabrication Headache
| Koj Challenge | Yuav Ua Li Cas Qhov Kev Tiv Thaiv no daws Nws |
|---|---|
| HMI zaub xav tau ib lub taub dej ntws tawm | CNC -machined duab plaub lossis voj apertures nrog ± 0.5mm kam rau ua, deburred npoo, npaj rau gasket zaum |
| Sensor cables yuav tsum tau kaw nkag los ntawm 6 cov lus qhia | Custom gland phaj layouts: sab saum toj, hauv qab, sab, los yog nram qab - matched rau koj connector suab |
| Wireless module xav tau antenna passthrough | Ua ntej- xuas nrig ntaus SMA/N- hom kav hlau txais xov qhov nrog cov kav dej tsis muaj kab thaiv kev xaiv |
| PLC tsim cov cua sov hauv ib lub thawv kaw | Xam cov qauv venting, xaiv kiv cua- txiav tawm nrog IP55 lim cov khoom siv, lossis tag nrho cov qauv tsim kev sib khi zoo |
| Koj lub hom phiaj yuav tsum yog pem hauv ntej thiab nruab nrab | Laser-etched logo ntawm lub qhov rooj, txhob lo lo ntxhuav- tshuaj ntsuam tus lej qauv, kev cai- xim hmoov tsho tiv no kom phim koj hom palette |
| Cov neeg siv khoom xav tau ntau- ntawv pov thawj kev lag luam | IEC 62208, CE, RoHS tus qauv; UL 508A thiab CSA txoj hauv kev muaj rau North American xa tawm |
Daim Duab Qhia Peb Dab Tsi - Thiab Peb Tus Kws Ua Haujlwm Tshaj Li Cas

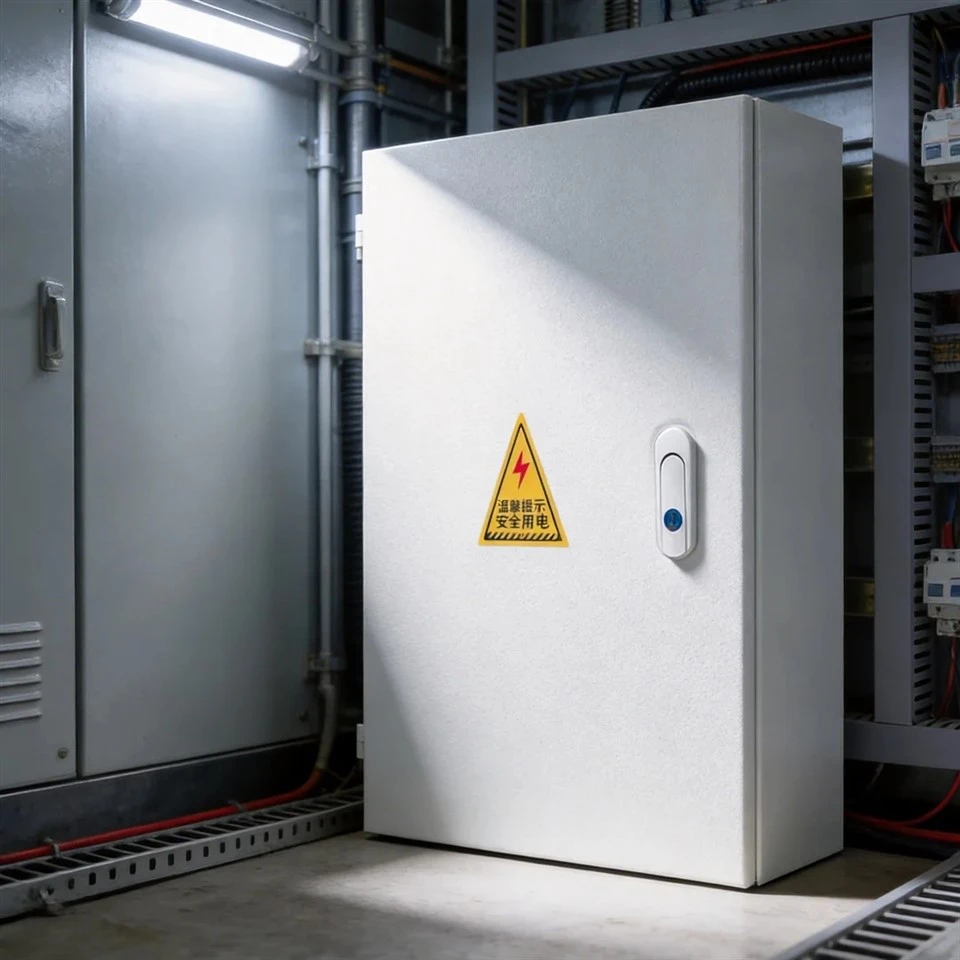

Cov duab uas koj tau muab tso rau qhia tau hais tias lub phab ntsa huv si, kev tshaj lij- cov cuab yeej txuas nrog hauv chav hluav taws xob. Nov yog engineering logic tom qab txhua qhov kev nthuav dav pom:
| Nto moo nthuav dav | Functional Engineering |
|---|---|

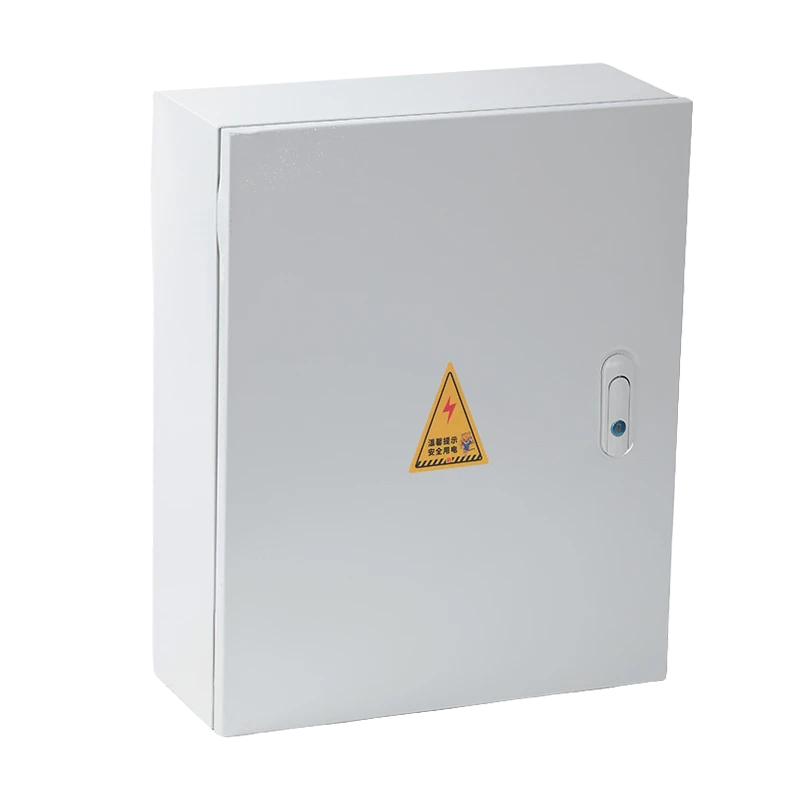

| Smooth, uninterrupted qhov rooj nto | Zoo tagnrho canvas rauHMI mountinglos yoghom lag luam- tsis muaj tav, vents, lossis protrusions uas cuam tshuam nrog kev teeb tsa lossis lub logo pom |

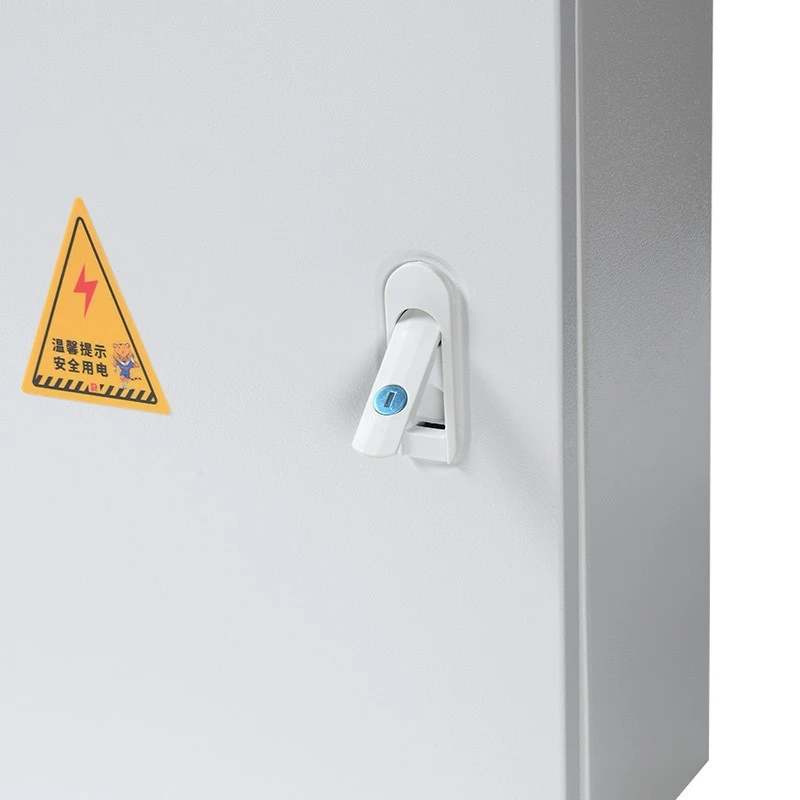

| Daim ntawv ceeb toom daim duab peb sab (ISO 7010 W012) | Txheem hluav taws xob muaj kev phom sij; peb muabkev cai kev nyab xeeb daim ntawv lohauv txhua hom lus lossis kev ua raws cai (OSHA, ANSI Z535, IEC 60417) |
| Sleek flush-mounted qhov rooj kov nrog thawb-latch | Ib - tes ua haujlwm rau cov kws tshaj lij hnav hnab looj tes;key-lock lossis padlock hasp upgradesmuaj rau tamper- ntawv pov thawj |
| Ntxuav sab profile, tsis muaj sab nraud hinges | Npog pob khawm tsim- tswj cov phab ntsa nyias nyias thiab tiv thaiv kev phom sij hauv txoj kev nqaim |
| Pem teb- theem kev teeb tsa ntawm ib sab cable channel | Hauv qab - daim hlau nkagua ke nrog hauv pem teb -trunking systems; peb tuaj yeem ua ntej- txiav cov ntawv nkag kom haum rau koj cov kab dav dav |
| Muaj-qib epoxy tiav nyob rau hauv lub teeb fluorescent | High-gloss lossis textured hmoov txheejkev xaiv; UV- ruaj khov rau cov cuab yeej hauv tsev thiab sab nraum zoov |
Instrument Integration Spec Sheet
| Specification | Paub meej |
|---|---|
| Hom Enclosure | Phab ntsa-mounted hlau ntsuas enclosure / tswj vaj huam sib luag vaj tse |

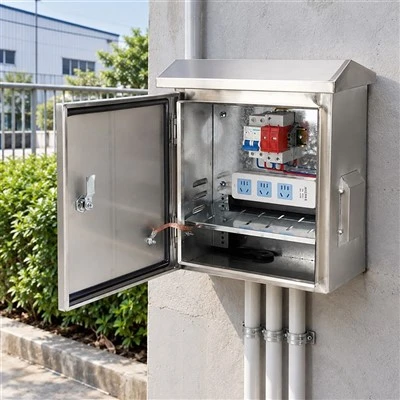

| Khoom siv lub cev | Txias- dov steel (1.2mm–1.5mm) txheem; stainless hlau 304/316 yeem |
| Qhov Rooj Tsim | Ib leeg- qhov rooj, seamless pem hauv ntej; xaiv pob tshab polycarbonate qhov rais rau HMI visibility |
| Mounting | Sab nraud slotted lugs rau pob zeb, masonry, los yog stud-phab ntsa installation |
| Kev tiv thaiv ntsuas | IP55 (tus qauv) / IP56 / IP65 / IP66 (kev cai) |
| Nto tiav | Epoxy hmoov txheej, RAL 7035 (lub teeb grey); ib qho xim RAL los ntawm 50 units |

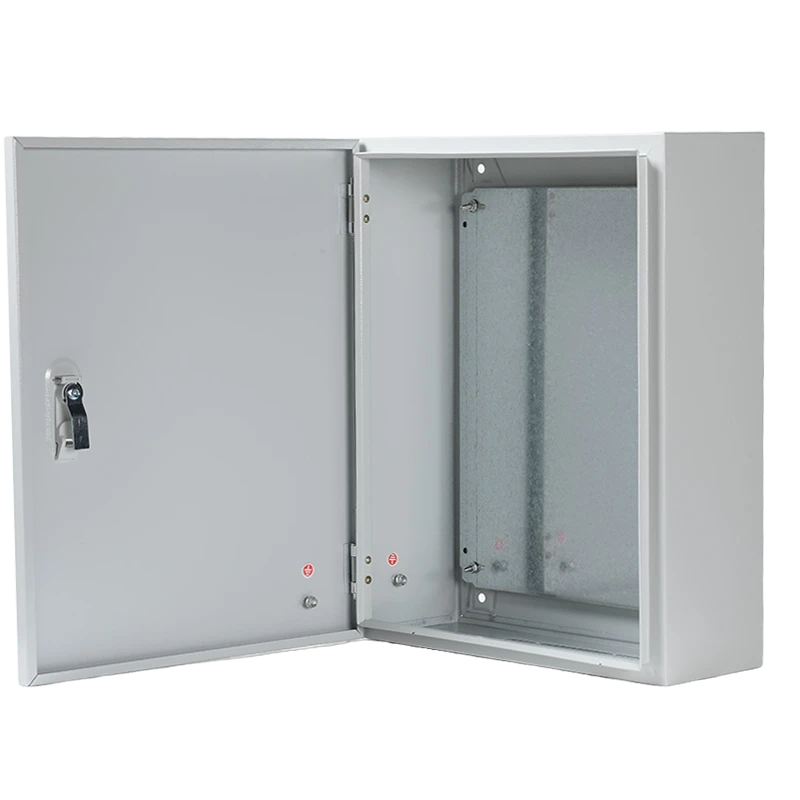

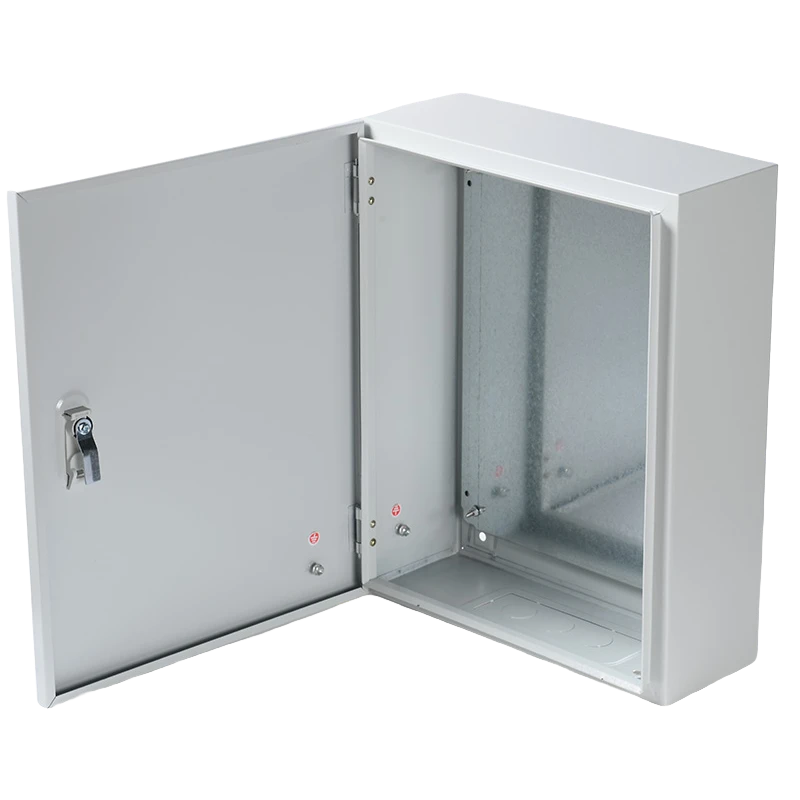

| Sab hauv Mounting | 35mm DIN rail (steel lossis aluminium); galvanized mounting phaj (2.0mm-3.0mm); adjustable qhov tob brackets |
| Cable nkag | Undrilled (blank) los yog ua ntej- punched caj pas daim hlau; PG / NPT / metric xov xaiv |
| Qhov cua | Khoom (sau), louvered passive vents, los yog kiv cua - txiav tawm nrog lim |
| Xauv Options | Lub quarter- tig lub cam xauv, lub xauv qhov tseem ceeb, thawb- khawm latch, padlock hasp |

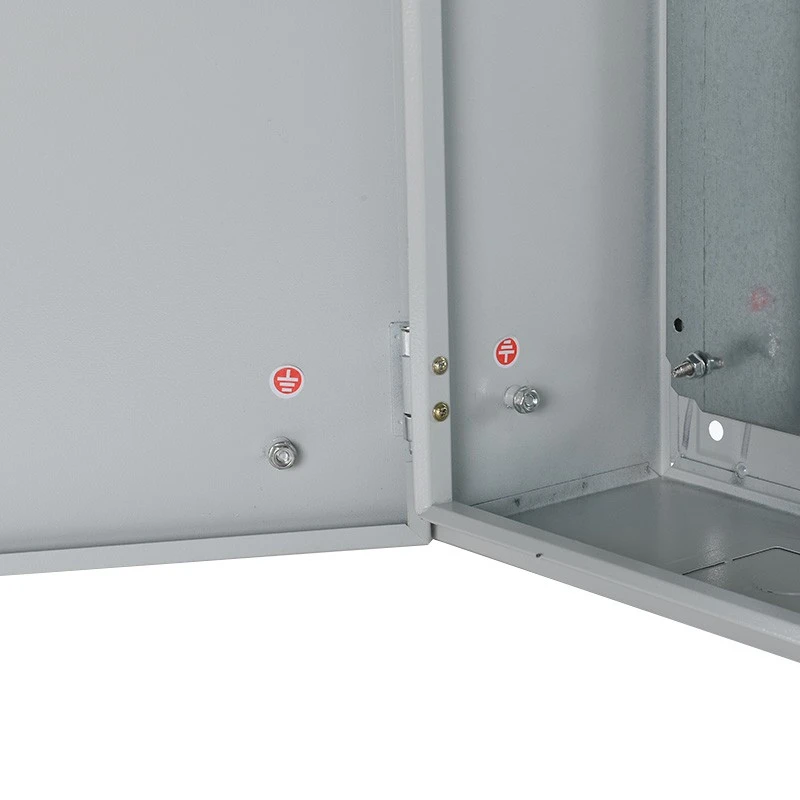

| Ntiaj teb txuas ntxiv | Sab hauv PE stud + sab nraud lub ntiaj teb davhlau ya nyob twg; tooj liab ntiaj teb busbar yeem |
| Ua raws li | IEC 62208, IEC 61439-2 (populated), CE, RoHS; UL 508A muaj |
Peb Qhov Kev Sib Koom Ua Ke - Ua raws li koj theem kev tsim khoom
Qib 1: Cov Khoom Siv Tsim Kho (Empty Enclosure)
Lub thawv liab qab nrog mounting phaj thiab DIN rail
Koj prototype koj ntsuas layout
Kev xa khoom sai tshaj plaws (5-8 hnub)
Kauj Ruam 2: Ua ntej-Kev Ua Haujlwm Zoo (Cov Khoom Siv-Npaj)
CNC cutouts rau koj cov lus qhia, connectors, thiab antennas
Ua ntej -wired terminal blocks thiab lub ntiaj teb infrastructure
Koj nruab koj cov khoom siv hluav taws xob; peb tuav cov hlau ua haujlwm
Kauj Ruam 3: Kev Ua Haujlwm Ntau Lawm (Kev Sib Koom Tes thiab Hom Tshuaj)
Koj qhov ntsuas tau nruab, xaim, thiab kuaj hauv peb lub thawv
Private -label branding: logo, qauv nab npawb, xim, phau ntawv
Nkoj ncaj qha mus rau koj tus neeg xa khoom lossis cov neeg siv khoom kawg - dawb - daim ntawv npaj
Ua rau Cov Khoom Siv Hluav Taws Xob - Tsis yog cov neeg cog lus hluav taws xob nkaus xwb
Thaum lub thawv ntim khoom siv rau cov neeg cog lus, lub thawv ntim khoom no ua haujlwmcov tuam txhab tsim khoom:
| Leej twg Orders This | Yam Lawv Tsim Hauv |
|---|---|
| Automation System Integrators | PLC + HMI tswj vaj huam sib luag rau cov tshuab OEMs |
| Hluav taws xob tswj tuam txhab | Fais fab kev ntsuas ntsuas, sub-metering enclosures |
| IoT & Telemetry Startups | Ntug suav rooj vag, LoRaWAN sensor hubs |
| Environmental Monitoring Firms | Cua zoo / dej zoo analyzer vaj tse |
| Kev ruaj ntseg & Access Control Hom | Biometric nyeem controllers, PoE hloov vaj tse |
| Cov Khoom Siv Kho Mob Distributors | Isolation fais fab saib xyuas, UPS faib vaj huam sib luag |
Yog tias koj cov khoom muaj PCB, cov zaub, lossis cov khoom sib txuas lus, cov ntaub ntawv no yog koj txoj kev ceev tshaj plaws los ntawm cov qauv mus rau ntau lawm.
OEM & Private Label - Koj Lub Hom Phiaj, Peb Kev Tsim Khoom
Peb ua haujlwm raws li koj qhov kev thovinvisible manufacturing khub:
| Kev Pabcuam OEM | Muaj peev xwm |
|---|---|
| Xim sib phim | Ib qho RAL code; textured los yog gloss tiav |
| Logo Daim Ntawv Thov | Laser engraving, txhob lo lo ntxhuav - npo luam ntawv, embossed txhuas nameplates |
| Custom Cutouts | Tso cov qhov rais, khawm qhov, LED qhov taw qhia apertures, kav hlau txais xov ports, qhov cua grilles |
| Ntim | Nruab nrab dawb -box nrog koj lub npe; khw muag khoom -npaj ntim |
| Cov ntaub ntawv | Cov ntawv qhia kev teeb tsa kev cai, kab kos duab, daim ntawv pov thawj ua raws li koj lub hom phiaj |
| Serial Number Tracking | Barcode / QR code cov ntawv txuas nrog cov khoom tsim khoom thiab cov ntaub ntawv xeem |
| Tso-Shipping | dig muag- xa ncaj qha mus rau koj cov neeg siv khoom kawg nrog koj qhov chaw nyob xa rov qab |
Yam tsawg kawg OEM xaj: 50 units rau hom xim / logo. Custom cutouts muaj los ntawm 1 units.
Daim ntawv pov thawj & Kev Lag Luam Thoob Ntiaj Teb
| Daim ntawv pov thawj | Qhov tseeb |
|---|---|
| IEC 62208: Ua | Empty enclosure standard - lub hauv paus rau kev lees paub thoob ntiaj teb |
| IEC 61439-2: Ua | Tsawg-voltage switchgear los ua ke tus qauv (thaum populated nrog breakers / busbars) |
| CE kos npe | European Economic Area kev lag luam nkag |
| RoHS | Kev txwv tsis pub muaj kev phom sij - yuav tsum tau ua rau EU thiab kev tswj hwm ib puag ncig |
| IP55 / IP65 / IP66 | Ingress tiv thaiv rau sab hauv tsev, sab nraum zoov, ntxuav- down, thiab plua plav ib puag ncig |
| UAS 508A | Kev tswj vaj huam sib luag muaj - muaj nyob rau ntawm kev thov rau North American tej yaam num |
| ISO 9001: 2015 | Kev tswj xyuas qhov system ntawv pov thawj |
FAQ - Cov lus nug los ntawm Cov Khoom Siv Hluav Taws Xob
Q: Koj puas tuaj yeem txiav lub qhov sib npaug rau 7-nti HMI touchscreen?A: Yog. Peb CNC- tshuab tso saib cutouts rau koj daim duab kos (± 0.5mm kam rau ua) nrog deburred npoo. Peb kuj tuaj yeem muab cov mounting bezel thiab gasket yog tias xav tau.
Q: Peb xav tau ib lub thawv uas tsis pom cov ntsia hlau sab nraud rau qhov zoo nkauj. Puas yog qhov ua tau?A: Yog lawm. Peb zais -pob khawm, yaug-latch tsim tshem tawm cov fasteners sab nraud ntawm lub ntsej muag ntawm lub qhov rooj. Mounting lugs yog nyob rau ntawm ob sab thiab nram qab, tsis pom los ntawm pem hauv ntej saib.
Q: Koj puas tuaj yeem nruab peb lub davhlau ya nyob twg thaiv, DIN rail cov khoom siv hluav taws xob, thiab cov kiv cua txias ua ntej xa khoom?A: Yog - tag nrho vaj huam sib luag sib dhos yog peb cov kev pabcuam tseem ceeb. Xa koj BOM rau peb thiab kos duab kos duab; peb qhov chaw, nruab, xaim, thiab kuaj. Koj tau txais lub ntsaws-thiab- ua si khoom.
Q: Koj puas txhawb nqa tsis yog- cov duab plaub lossis ntau- qhov rooj teeb tsa?A: Yog. Thaum daim duab qhia txog tus qauv ib qho - lub thawv qhov rooj, peb tsim ntau- cov ntaub ntawv kaw lus, L- cov duab zoo li tus, thiab qhov tob- txuas ntxiv ntxiv - rau cov cuab yeej uas xav tau roj teeb thaub qab compartments.
Q: Lub sij hawm ua cov khoom lag luam rau cov khoom lag luam, kev cai - txiav tawm ntau lawm ntawm 200 units yog dab tsi?A: Feem ntau 18-25 hnub los ntawm kev pom zoo kos duab. Thawj- lub sijhawm xaj khoom suav nrog ua ntej- qauv tsim khoom rau koj qhov kev pom zoo ua ntej kev cog lus ua haujlwm puv ntoob.
Kev sib piv kev sib piv: Vim li cas qhov kev kaw no dhau ntawm Standard Junction Box
| Feature | Standard Junction Box | QHECO Instrument Enclosure |
|---|---|---|
| Qhov Rooj Tsim | Pav ca lossis ribbed - tsis tso tawm - phooj ywg | Seamless pem hauv ntej lub ntsej muag- optimized rau HMI / branding |
| Cutout Capability | Tsis muaj; DIY drilling voids IP ntsuam xyuas | Factory CNC machiningtuav IP kev ncaj ncees |
| Sab hauv Layout | Qhov khoob khoob | DIN rail + mounting phaj + cable tswjua ntej - nruab |
| Thermal Design | Passive nkaus xwb, tsis suav | Engineered venting los yog yuam-air optionsraws li cov cua sov load |
| Branding | Tsis muaj | OEM tag nrho: xim, logo, daim ntawv lo, phau ntawv |
| Hom neeg siv | Hluav taws xob ntawm qhov chaw | Khoom tuam txhab shipping cov khoom tiav |
Hu rau Kev Ua - Los ntawm Prototype mus rau Kev Ua Haujlwm
Koj muaj instrumental. Peb muaj lub platform enclosure. Wb muab lawv ua ke.
Kauj ruam 1:Xa peb koj qhov ntsuas qhov ntev, qhov txuas txuas, lossis kos duab kos duab
Kauj ruam 2:Peb xa rov qab 3D layout tswv yim thiab hais lus hauv 24 teev
Kauj ruam 3:Pom zoo tus qauv; peb manufacture koj lub hom phiaj ntau lawm khiav
